codex-ui is a community-maintained interface plugin for DeepSeek Harness (DSH), not an official DeepSeek AI product.

This plugin rebuilds DSH Web interface elements to match Codex: edge shadows and hairlines, the sidebar divider, the model and reasoning-effort menu, composer structure, and the light and dark palettes. Values come from Codex screenshots and its color picker, measured per pixel. The measurements and the source images are in the sections below and in assets/reference/.

Host compatibility

Developed against DSH 0.1.7-rc.1 (npm global install) and 0.1.7-rc.2 (Windows desktop shell app.asar). The verification scripts read shipped CSS straight out of app.asar; a host upgrade that changes structure fails their assertions.

Features

Id	Content
⑫	Model picker: native trigger, opaque white menu, 28px rows, permanent check column, pending spinner
⑬	Composer header turned blank, panel buttons keep the official icons
⑭	Composer card: radius, shadow, geometry, tool row, hero layout
⑯	Right panel guide entries: no border, no fill, 52px rows, 20px icons, filled shortcut pills
⑰	Composer bottom controls: add button has no box until hover; model and permission controls share the hover chip
②	Sidebar colors match the Codex light sidebar; sidebar rows align with the workspace list
②c	Conversation window edge: 0.5px hairline plus a 24px ambient shadow
②d	Right panel: hairline only on its left edge, shadow bleeds upward only; the dockkit 1px border is removed
②e	Right divider handle: center-darkest gradient on hover

Screenshots

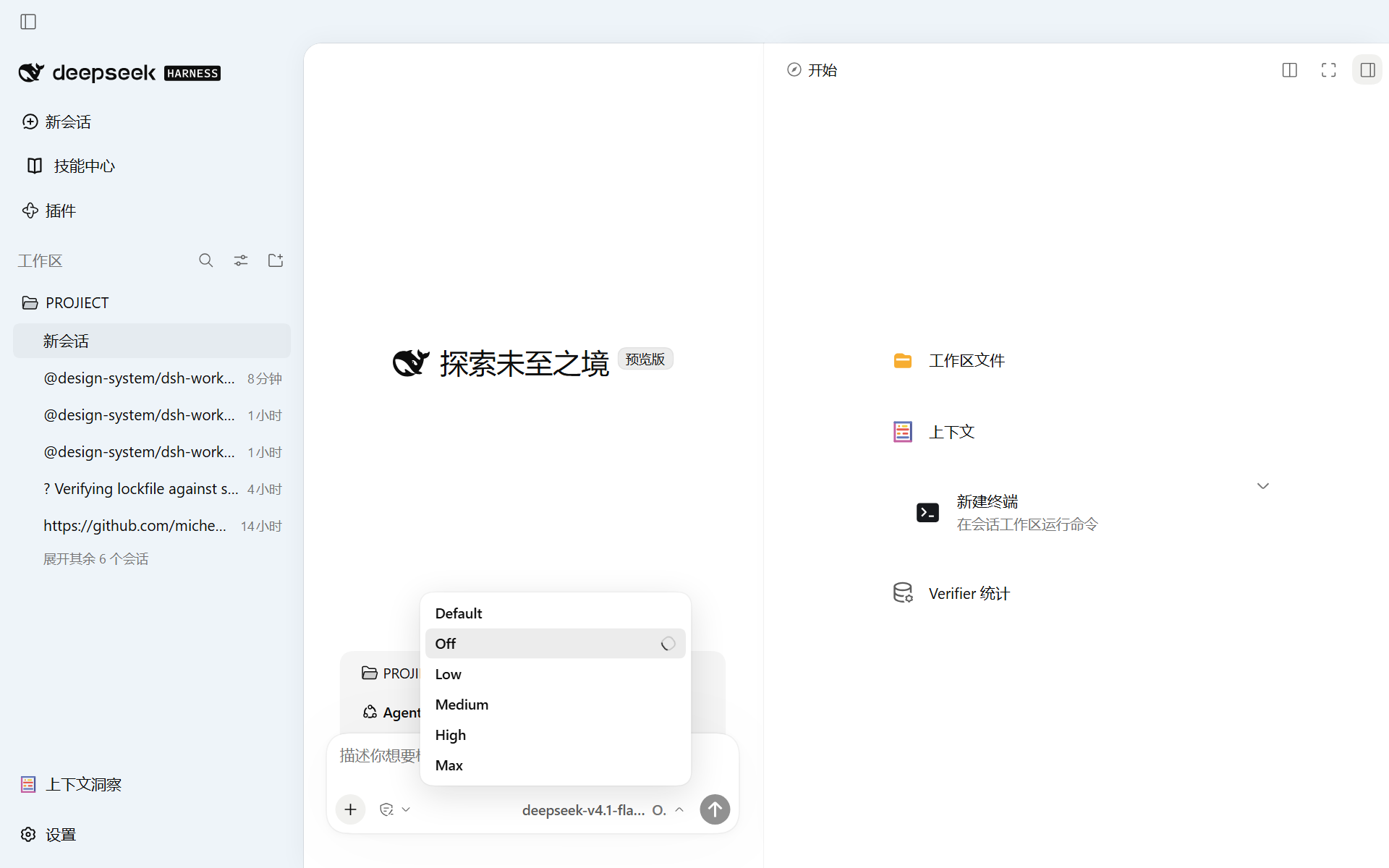

Light theme: conversation window edge and right panel.

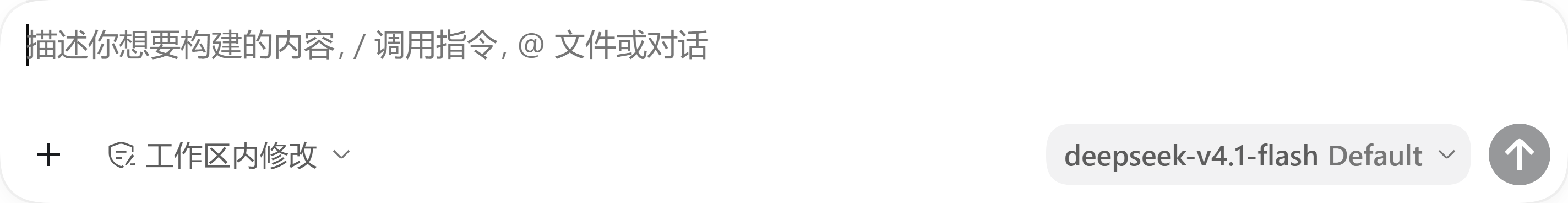

Composer bottom row: no box by default, a chip on hover.

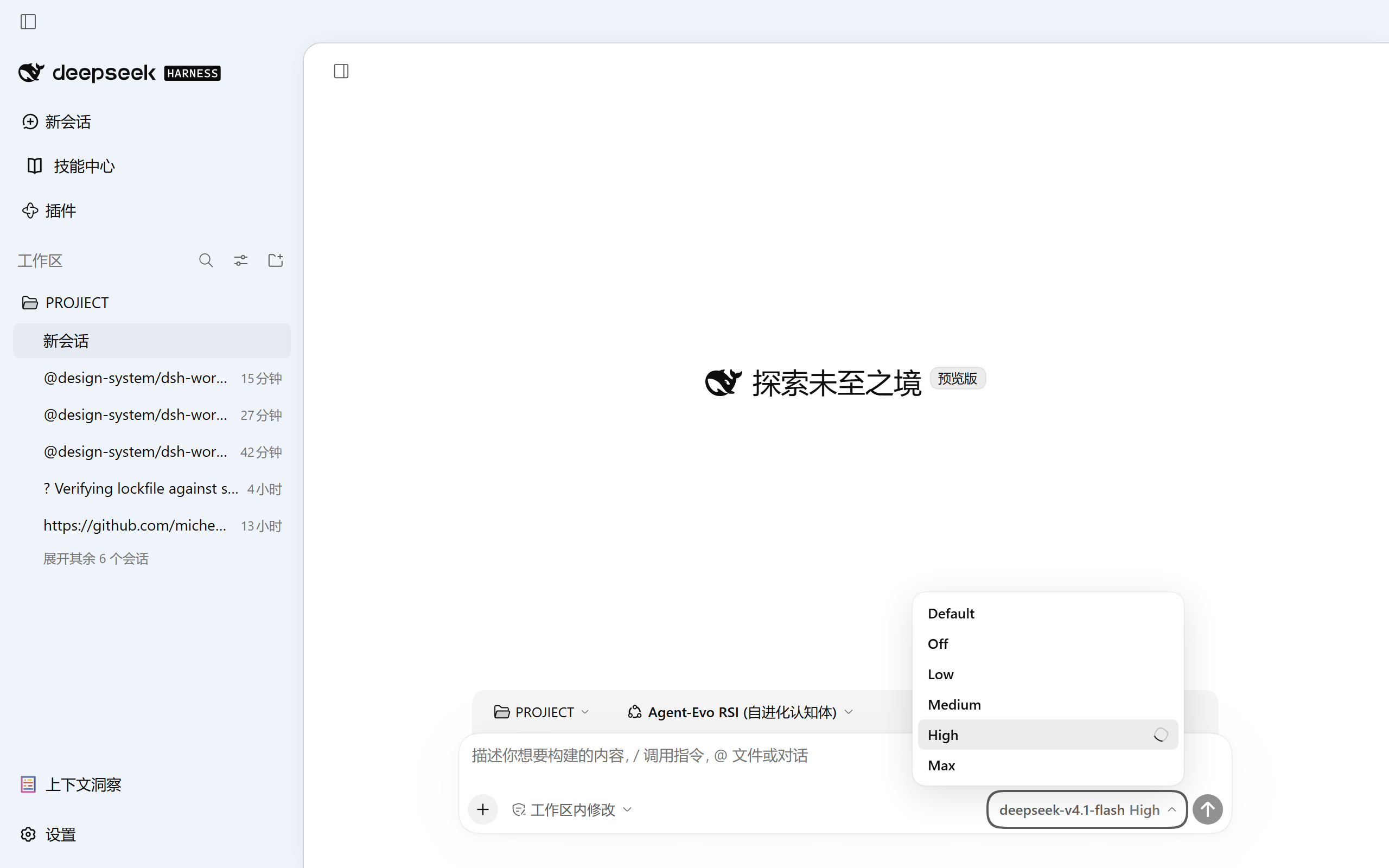

Model menu while a reasoning effort is being written.

Install

npm run install:web        # node scripts/install-plugin.mjs --write
npm run install:desktop    # desktop shell; restart the app afterwards
npm run build              # regenerate theme.css and client.js from skins/codex-ink

node scripts/install-plugin.mjs                              # dry run (web profile by default)
node scripts/build.mjs --check                               # report stale artifacts without writing

The installer scopes the five stylesheets in skins/codex-ink/ to html[data-codex-ui], combines them with src/client.template.js into client.js, copies the result to profiles/<name>/vendor/codex-ui, creates the node_modules/codex-ui junction, and appends the insert entry to the profile cordis.patch.yml.

The same stylesheets can be picked up by a skin loader:

node scripts/install-skin.mjs          # per-file SHA256 check against $DSH_HOME/skins/codex-ink
node scripts/install-skin.mjs --write  # overwrite on drift

Layout

Path	Content
index.js cordis.patch.yml package.json	Host half and manifest
src/client.template.js	Browser half template
src/build.mjs	Scoping and artifact generation; the only implementation
theme.css client.js	Generated from skins/codex-ink/ by src/build.mjs
skins/codex-ink/	Stylesheet sources (skin.css / patches.css / sidebar-align.css / window-shadow.css / composer.css)
scripts/build.mjs	Regenerate the artifacts; --check compares without writing
scripts/check-repo.mjs	Host-free repository checks; the CI entry point
scripts/host-paths.mjs	Resolves app.asar, the global @deepseek-ai modules and Chromium
scripts/install-plugin.mjs scripts/install-skin.mjs	Installers
scripts/*-verify.mjs scripts/live-gui-probe.mjs	Fixture verification and live probing
assets/reference/	Codex reference images
assets/screenshots/	Verification output
.github/workflows/ci.yml	CI

Verification

Command	Coverage	Requirement
npm run check	Syntax, JSON, manifest, artifact sync, encoding, docs pairing, machine-specific paths	none
node scripts/audit-codex-ink.mjs	Skin structure, 36 WCAG pairs, color whitelist	none
node scripts/model-picker-verify.mjs	⑫ and the pending indicator, 18 assertions	none
node scripts/rightbar-verify.mjs	Shadow layer, right panel, both dividers, 42 assertions	none
node scripts/sidebar-align-verify.mjs	Sidebar column alignment, 6 assertions	none
node scripts/hero-verify.mjs	⑬ ⑭ ⑰ and the focus ring, 8 assertions	none
node scripts/live-gui-probe.mjs --url <token URL>	Real GUI: 10 assertions on shadows, both dividers, the model menu pending window	a running dsh web

npm run check needs no host. The five fixture suites run locally: they need shipped CSS from app.asar plus a DOM rebuilt from the render code, read with getComputedStyle. Fixtures have no title bar, no real AppFrame grid and no real RPC, so the shadow layer, divider hover and pending feedback are verified by the live probe.

Host paths

The verification scripts read the host they run against. Each path is resolved in this order:

1. DSH_ASAR, DSH_GLOBAL_MODULES, DSH_CHROME;
2. scripts/host.local.json, a gitignored per-machine file, for example { "asar": "D:/.../resources/app.asar" };
3. a scan of the standard install locations, Playwright's browser cache and npm root -g.

No machine-specific path is committed.

dsh --profile web --port 3099 --no-open      # prints a token URL
node scripts/live-gui-probe.mjs --url "http://127.0.0.1:3099/?token=..." --dpr 1.5

The probe opens a new conversation before timing the pending window, and exits non-zero if an assertion fails. The token expires; after about half an hour requests return 401 and a restart is needed.

Measurements

Window edges

assets/reference/codex-app-reference-1x.png (1901x1107, DPR 1):

Location	Scan	Value
Conversation window, left edge	y=600	x=340..355 ramps 238,241,247 to 231,233,239; x=356 is a single pixel 212,215,221
Conversation window, top edge	x=800	y=30..45 ramps 237,242,247 to 232,237,242; y=46 is a single pixel 214,218,224
Right panel, left edge	y=600	x=1437 is a single pixel 237,237,237, both sides pure white
Right panel, top edge	x=1700	y=46 is a single pixel 213,218,224 with the same ramp above

In both reference images the hairline is one device pixel, so the stylesheet uses 0.5 CSS px: at the 150% scaling of this machine, 1px rasterizes into two device pixels.

Target	box-shadow
Conversation window	0 0 0 0.5px var(--dsw-alias-border-l2), 0 0 24px rgba(13,13,13,.05)
Right panel	0 0 0 0.5px var(--dsw-alias-border-l1), 0 -12px 24px -12px rgba(13,13,13,.05)

Theme colors

Source: assets/reference/codex-theme-light.png and codex-theme-dark.png (the Codex color picker).

Role	Light	Dark	Token
Accent	#339CFF	#0169CC	--dsw-alias-link
Background	#FFFFFF	#111111	--dsw-alias-bg-base
Foreground	#1A1C1F	#FCFCFC	--dsw-alias-label-primary
Hover fill	#F2F2F3	rgba(252,252,252,.06)	--dsw-codex-hover-fill

The dark ramp rises from #111111: sidebar #171717, layer 1 #1f1f1f, layer 2 #2a2a2a, layer 3 #353535.

Sidebar colors

Source: point samples from assets/reference/codex-sidebar-reference.png.

Token	Value
--dsw-alias-bg-sidebar	#eef4f9
--dsw-specific-sidebar-fill	#eef4f9
--dsw-specific-sidebar-nav-item-active	#e2e9ed
--dsw-specific-sidebar-nav-item-hover	#e8eef3

Limits

• Fixture checks are not signed-in screenshots. The dsh web launch token has a lifetime and lives in process memory only.
• In headless mode only the foreground tab handles :hover, so multi-page fixtures open the web-shape page last.
• A flat single list of model plus effort, and a per-model description column, need a client plugin that takes over the conversation.input.model slot and reuses ctx.modelDirectories. Not implemented here.
• ⑯ keeps the host tab strip: hiding it also removes the fullscreen and collapse buttons.
• The session row text column is 40px, 2px shorter than the workspace, new session and plugin rows, because the shipped Rows.module.css gives .sessionRow .title its own margin. Left as is.
• composer.css and patches.css use 21 hash-class suffix anchors ([class$=…], [class*=…]) where the host exposes no data-*.

Codex source alignment

The Codex desktop app carries its webview CSS inside resources/app.asar (webview/assets/app-*.css); the public openai/codex repository holds the CLI and the TUI, not this interface. Values below come from app 26.727.4816.0.

Value	Codex	This skin
Motion	--transition-duration-basic: .15s, --transition-duration-relaxed: .3s	--dsw-motion-fast: 150ms, --dsw-motion-slow: 300ms
Easing	--ease-in-out and --default-transition-timing-function, both cubic-bezier(.4, 0, .2, 1)	--dsw-ease
Focus ring	--color-border-focus = --blue-300 #339cff; dark the same at 70%	--dsw-codex-focus
Pending spinner	--animate-spin: spin 1s linear infinite	codex-ui-spin 1s linear infinite
Hairline	--shadow-hairline: 0 0 0 .5px #0000001a	the window and panel hairlines use the same 0.5px ring
Light foreground	--color-text-foreground: #1a1c1f	--dsw-alias-label-primary
Chip fill	--background-button-secondary-hover, 8% of the foreground	light #f2f2f3 (measured), dark rgba(255,255,255,.08)

Deliberate differences:

• The dark base stays #111111 from the Codex color picker. The app CSS resolves the dark surface to --gray-900 #181818; picker and CSS disagree, and the picker wins here.
• The dark layer ramp (#171717 / #1f1f1f / #2a2a2a / #353535) is a derivation, not Codex's ramp. Codex's grays are #0d0d0d / #181818 / #212121 / #282828 / #303030 / #414141 / #4f4f4f / #5d5d5d / #afafaf / #ededed / #f3f3f3 / #f9f9f9 / #fff.
• The composer card radius is 25px as measured on assets/reference/codex-composer-reference.png. The app CSS gives --radius-3xl (20px) for the multi-line composer and 22px for the single-line one; the gap is the screenshot's device scale factor, which is not recorded.
• The sidebar is 280px wide, set by the host layout. Codex clamps its own sidebar with clamp(240px, 275px, min(520px, calc(100vw - 320px))).
• Dark link text keeps #0169cc, which the app uses for --color-token-text-link-foreground; the app's own --color-text-accent is #99ceff (--blue-100) in dark.

CI

.github/workflows/ci.yml runs scripts/check-repo.mjs and scripts/build.mjs --check on Ubuntu and Windows, Node 22 and 24. The fixture suites and the live probe need the desktop shell and Chromium, so they stay local.

License

MIT.
