dsh-ios-simulator-helper

English | 简体中文

A DeepSeek Harness (DSH) native port of the official ZCode ios-simulator@0.1.0 plugin: all 20 original MCP tools preserved as native DSH tools, plus a full settings page (Settings → iOS Simulator) that edits the simulator parameters in-app instead of through environment variables.

• Tool and argument names are identical to the original, so workflows written for the ios_simulator MCP server keep working; one tool is added — ios_shutdown_simulator, because the original could boot a simulator but never stop one.
• 17 settings fields in 5 groups, all live-editable; an empty field falls back to the original plugin's IOS_SIM_* variable, then to the built-in default.
• The settings page detects the host system and, on a non-macOS host, states that this plugin only supports macOS; every tool that drives Apple tooling then refuses with a clear message instead of failing with spawn xcrun ENOENT, while ios_preflight reports the failing host check and ios_discover_project, ios_create_app and ios_ui_status still answer.
• Published as @zhz8888/dsh-ios-simulator-helper; the plugin page shows iOS Simulator Helper / iOS 模拟器助手 from locale/ rather than the raw package name, and both descriptions say the plugin is unofficial and not affiliated with Apple.

Quick start

On a Mac with full Xcode, at least one iOS runtime and DSH installed:

1. Install the plugin

   dsh plugin --profile <profile> add @zhz8888/dsh-ios-simulator-helper


   In DSH Desktop, open Plugins and add the same package name there. Reload or restart DSH afterwards.

2. Check the machine — open Settings → iOS Simulator and press Run diagnostic. It runs exactly the checks ios_preflight runs (full Xcode, a simulator runtime, idb), and prints a fix for anything missing.

3. Use it — ask for what you want ("build and run this project on the iPhone 16 simulator", "screenshot the running app"), or call the 21 ios_* tools directly. Everything the tools need is editable on that settings page.

Contents

• Quick start
• Requirements
• Install
• Settings page
• Screenshots
• Tools
• Skill and slash command
• Differences from the original
• Known limitations
• Releases
• Contributing
• License

Requirements

Dependency	Notes
macOS	The only supported host. xcrun simctl, xcodebuild and the simulator window app exist nowhere else.
Full Xcode	xcode-select -p must point at Xcode.app/Contents/Developer; Command Line Tools alone are not enough.
An iOS Simulator runtime	At least one iOS/iPadOS runtime installed from Xcode → Settings → Platforms.
Node.js ≥ 22	The DSH host runtime.
idb (optional)	Needed only by the ios_ui_* tools. Without it, build/run/screenshot/logs are unaffected.

ios_preflight checks every item above and prints a fix for each failure; the settings page's "Run diagnostic" button runs the same checks.

Install

dsh plugin --profile <profile> add @zhz8888/dsh-ios-simulator-helper

DSH Desktop: the desktop profile belongs to the Electron app — open Plugins, add @zhz8888/dsh-ios-simulator-helper there, and enable the row it creates. After a reload or restart the page is at Settings → iOS Simulator; it only appears while the host half actually serves this plugin's settings namespace.

The published tarball contains everything the plugin needs — the host half, the browser bundle, the bundled skill and the locale/ entries — and nothing is compiled at install time, so no build approval step is involved. @deepseek-ai/cordis, @deepseek-ai/dsh-tools and @deepseek-ai/schemastery are peer dependencies provided by the harness, so the plugin pulls in no second copy and has no runtime dependencies of its own; DSH's compatibility gate compares the @deepseek-ai/dsh* peer ranges against the running version and refuses to install on a mismatch.

Mount the package exactly once. dsh plugin add records the row in dsh.profile.bundles; adding a second row for the same package in the profile's own cordis.patch.yml registers every tool name twice and fails at the loader.

Upgrade and uninstall

dsh plugin --profile <profile> add @zhz8888/dsh-ios-simulator-helper@latest   # upgrade
dsh plugin --profile <profile> remove @zhz8888/dsh-ios-simulator-helper      # uninstall

Settings live in the profile, not in the package, so both commands leave them in place. The data directory (by default $DSH_HOME/ios-simulator-helper) holds screenshots, build logs and DerivedData; it is yours to delete, and uninstalling does not touch it.

Version gate

The DSH compatibility range is >=0.2.0-rc.2, a lower bound only, declared identically in peerDependencies, engines.dsh and dsh.compatibility.dsh: a runtime below it is refused at install time, and no future harness release is excluded.

One node-semver detail survives — a new tuple's prerelease such as 0.2.1-alpha.1 is not admitted by npm's and pnpm's default rules, so that install fails until either the range gains a branch for the tuple (">=0.2.0-rc.2 <0.2.1-0 || >=0.2.1-0") or the peer check is skipped:

dsh plugin --profile <profile> add @zhz8888/dsh-ios-simulator-helper \
  --config.strict-peer-dependencies=false

Stable releases (0.2.0, 0.2.1, 0.3.0, 1.0.0, …) are unaffected and always admitted.

Settings page

The settings namespace equals the profile patch row id equals ios-simulator-helper (also dsh.name). The page reads and writes through ctx.configForms, so staged edits, dirty detection, inline validation, optimistic concurrency (revisions) and "overridden / reset to default" all come from the harness. It is one card per category, built from the same field kit as the built-in settings pages (@deepseek-ai/dsh-client-ui-primitives); the three timeouts are entered in whole seconds, while the legacy IOS_SIM_*_MS variables are still read in milliseconds and converted.

Saving happens in a pill that sticks to the bottom of the page: it appears while edits are staged (or a write is in flight, or one failed), names that state next to a status dot, and carries Discard changes and Save (disabled while a draft is invalid). A draft that merely puts a control back to the value already in effect counts as no edit at all, a confirmation toast reports a write that landed, and leaving the page discards staged edits.

Group	Field	Type	Default	Legacy env fallback	Notes
Simulator and device	defaultDevice	text (suggestions from this machine)	iPhone 16	IOS_SIM_DEFAULT_DEVICE	Device-name fragment used when a tool names no udid/device; falls back to the first available iPhone on a miss.
	defaultRuntime	text (suggestions from installed runtimes)	empty	IOS_SIM_DEFAULT_RUNTIME	Runtime fragment such as iOS-27; empty matches any. A preference, not a requirement: a stale value widens the pool instead of erroring.
	autoBootSimulator	switch	on	IOS_SIM_AUTO_BOOT	When off, tools fail instead of running simctl boot for a stopped target.
	autoOpenSimulator	switch	on	IOS_SIM_AUTO_OPEN	Matches the original by opening the Simulator window (boot / show / open URL / build and run); off keeps everything headless.
	bootTimeoutSeconds	integer	120	IOS_SIM_BOOT_TIMEOUT_MS (ms)	Longest wait for one simctl boot / bootstatus, in seconds. The legacy variable keeps its millisecond spelling and is converted.
UI automation	uiBackend	select	auto	IOS_SIM_UI_BACKEND	auto probes for idb; idb requires it; none disables the UI tools; xcodebuildmcp is reserved.
	idbBinary	text	idb	IOS_SIM_IDB_BINARY	Command name or absolute path of idb.
	uiTimeoutSeconds	integer	60	IOS_SIM_UI_TIMEOUT_MS (ms)	Longest runtime of one idb UI command, in seconds; the legacy variable is milliseconds.
Build and DerivedData	defaultConfiguration	text	Debug	IOS_SIM_CONFIGURATION	Used when a tool names no configuration.
	buildTimeoutSeconds	integer	600	IOS_SIM_BUILD_TIMEOUT_MS (ms)	Longest runtime of one xcodebuild build, in seconds; the legacy variable is milliseconds.
	extraBuildArgs	multiline	empty	IOS_SIM_EXTRA_BUILD_ARGS	One argument per line, # starts a comment; inserted after -derivedDataPath and before build.
	derivedDataDir	text	empty	IOS_SIM_DERIVED_DATA_DIR	Empty uses <data dir>/DerivedData/<project fingerprint>.
	disableCodeSigning	switch	on	IOS_SIM_DISABLE_CODE_SIGNING	The original always passed CODE_SIGNING_ALLOWED=NO; off lets Xcode decide.
Logs	logSeconds	integer	120	IOS_SIM_LOG_SECONDS	Recent seconds ios_logs reads when the call names no window; capped at 3600.
	logLimit	integer	20000	IOS_SIM_LOG_LIMIT	Largest rendered log ios_logs returns when the call names no limit.
Output directories	dataDir	text	empty	IOS_SIM_PLUGIN_DATA	Root for screenshots, build logs and DerivedData; empty uses $DSH_HOME/ios-simulator-helper, then ~/.dsh/ios-simulator-helper.
	screenshotDir	text	empty	IOS_SIM_SCREENSHOT_DIR	Empty uses <data dir>/screenshots.

Below the form sit the host check and three buttons:

• Host system — decided twice: synchronously from the browser's own platform string (so a non-macOS browser sees the notice on first paint, before any request), then authoritatively from the host half's GET /api/ios-simulator-helper/host; the host wins on a conflict. When the host is unsupported — or the host never answered and the browser itself is non-macOS — a red notice titled "This plugin only supports macOS" appears above the form and names the detected platform.
• Run diagnostic → GET /api/ios-simulator-helper/status, the same checks ios_preflight runs, listed one by one with status, detail and fix.
• Refresh simulators and runtimes → GET /api/ios-simulator-helper/inventory, which discovers the Xcode path and version, the macOS version, simulators, runtimes and the resolved default target, to fill the fields' suggestion lists.

Legacy configuration

The original plugin's userConfig (default_device, ui_backend) and its environment variables IOS_SIM_DEFAULT_DEVICE, IOS_SIM_UI_BACKEND and IOS_SIM_PLUGIN_DATA still work as fallbacks (last column above), so an existing ZCode or CI setup needs no change. The original's IOS_SIM_PACKAGE_ROOT only located the plugin for its own MCP launcher; DSH resolves the package path directly and does not need it.

Screenshots

All four are the live page in DSH Desktop, in the order you scroll it — nothing is mocked up. They show the 1.1.0 card layout and the timeouts in whole seconds; the save bar only appears while an edit is staged, so it is not in these shots. The window ran the Chinese locale, so the section headings are Chinese while every field name is the same in both languages.

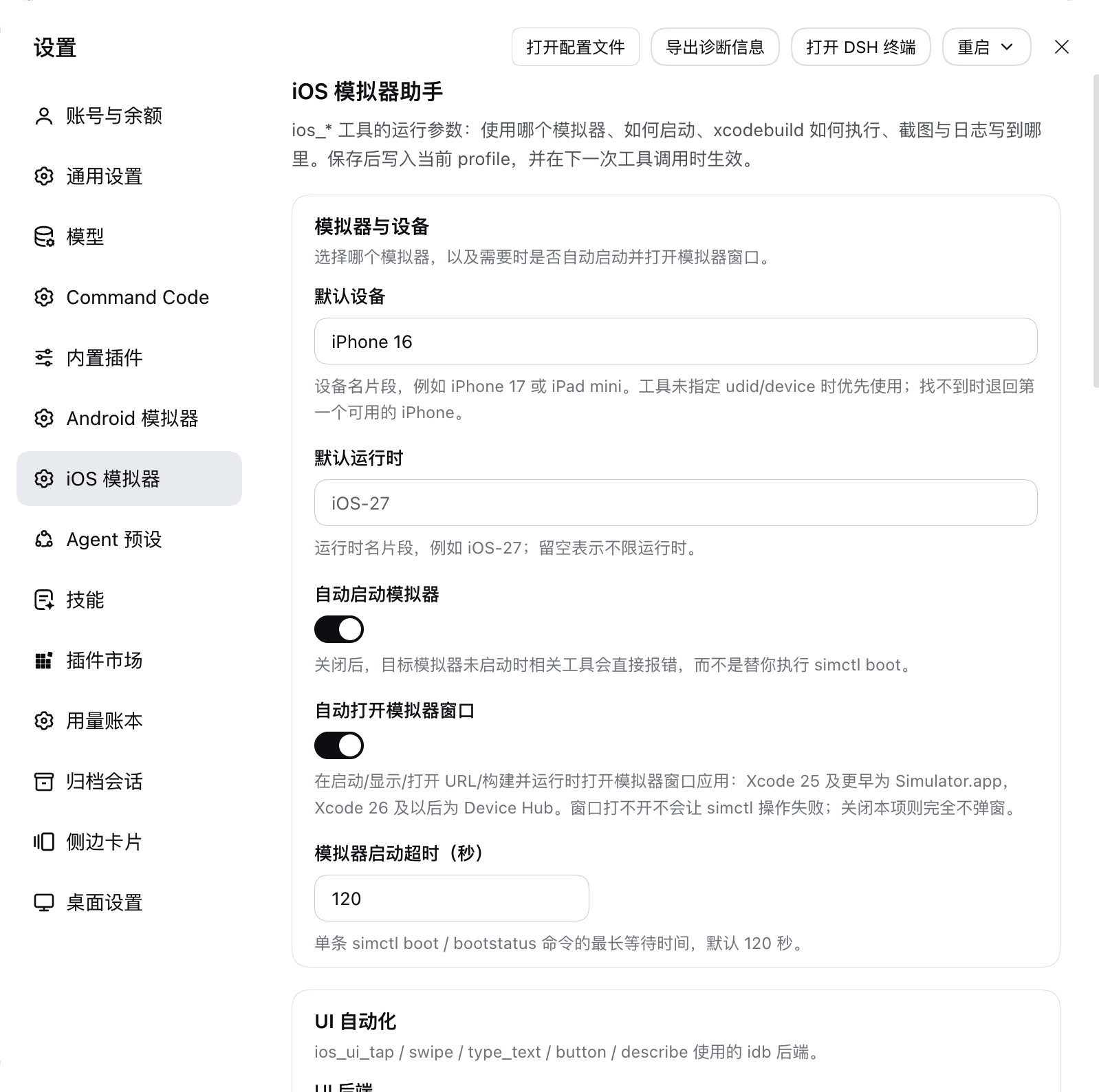

1. Simulator and device — the fields every ios_* call reads:

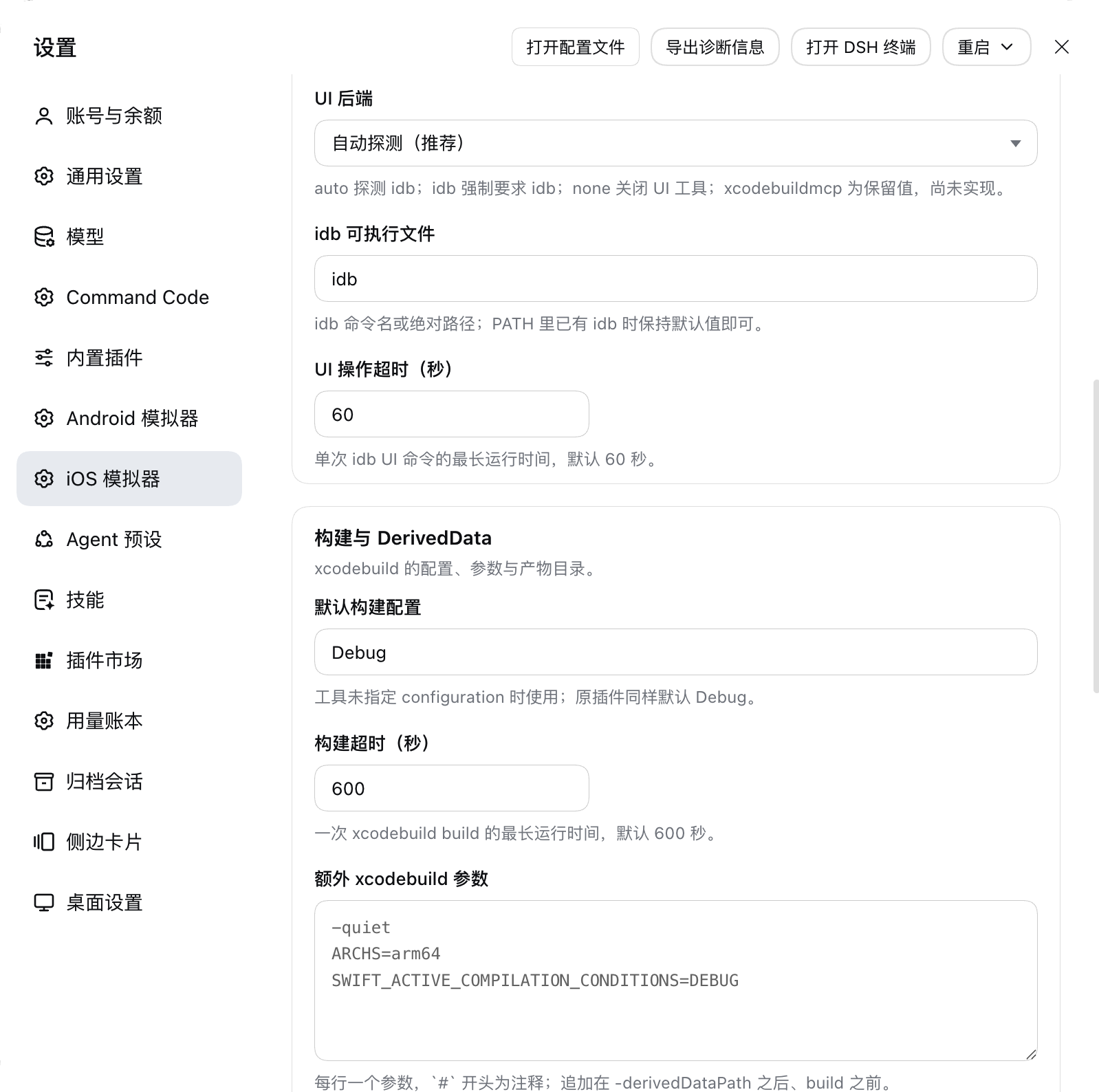

2. UI automation and builds — the idb backend and its timeout, then the xcodebuild configuration, build timeout and extra arguments:

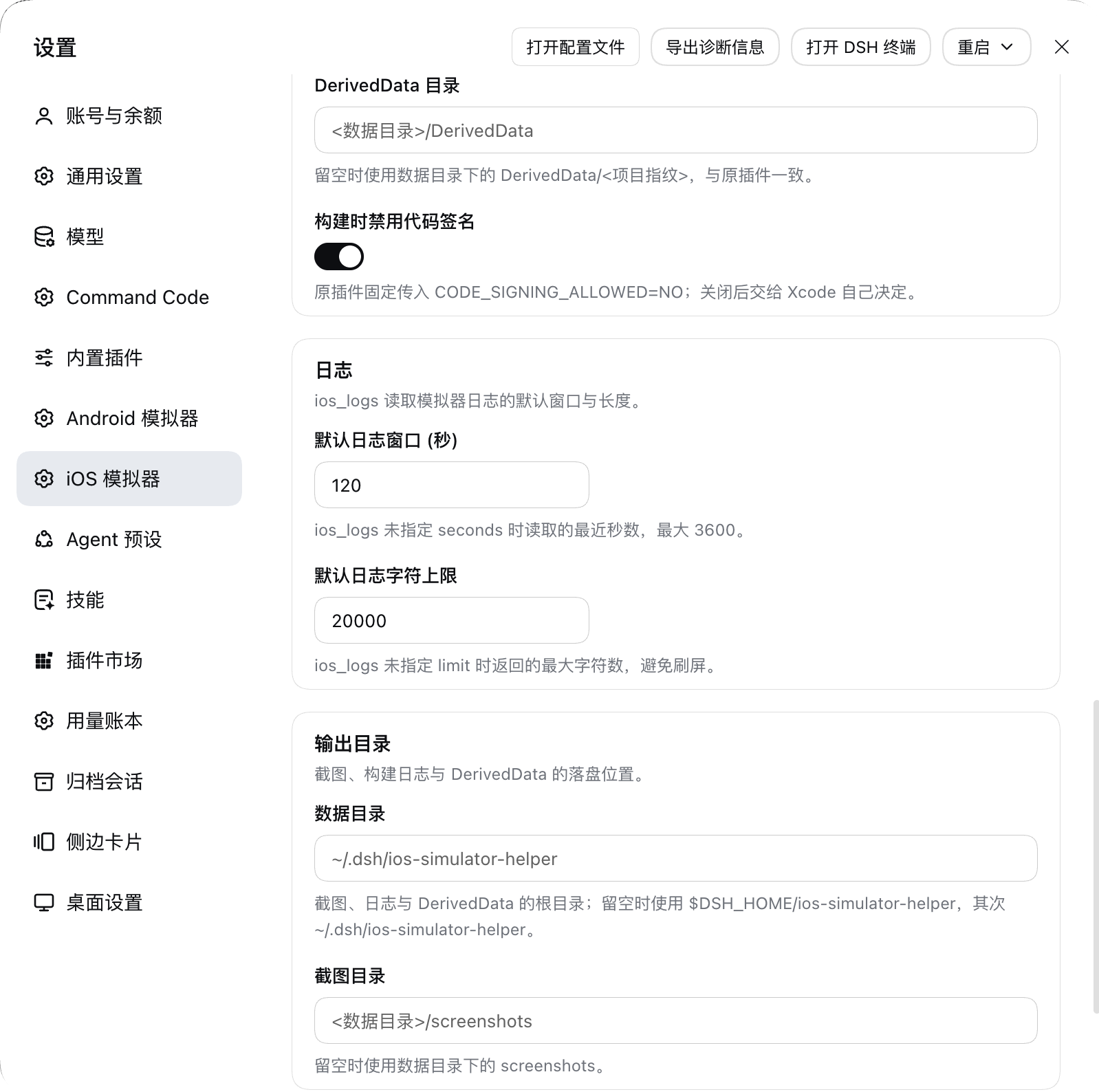

3. Build tail and logs — the extra xcodebuild arguments, the DerivedData directory and the code-signing switch, then the ios_logs window and character limit:

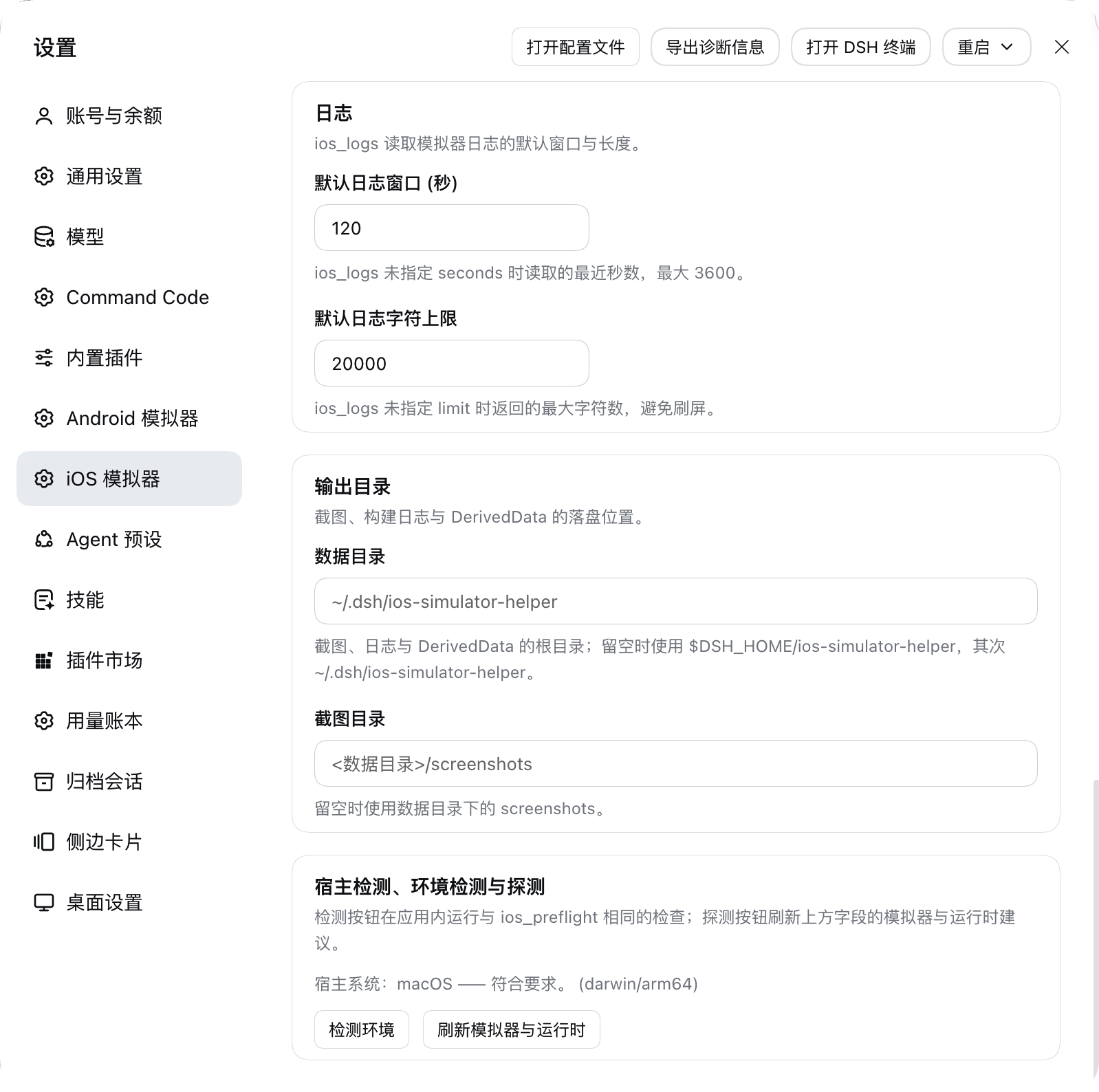

4. Output directories and the host check — where screenshots, logs and DerivedData land, then the macOS verdict with the two detection buttons:

screenshots.json lists these four files in this order next to package.json in the repository, which is how a plugin market finds them.

Tools

21 tools: the original 20 with identical names and arguments, plus one addition.

Tool	Purpose
ios_preflight	Check the host (macOS), Xcode, xcodebuild, simctl, runtimes, simulators and the UI backend, and echo the current settings.
ios_list_simulators	List iOS/iPadOS simulators and installed runtimes.
ios_boot_simulator	Boot the selected simulator, optionally opening the Simulator window.
ios_show_simulator	Open the simulator window app — Simulator.app on Xcode 25 and earlier, Device Hub on Xcode 26 and later — optionally focused on one UDID.
ios_shutdown_simulator	Added: shut the selected simulator down (simctl shutdown); already-stopped is a success, not an error.
ios_discover_project	Find .xcodeproj/.xcworkspace, schemes and bundle ids.
ios_create_app	Generate a minimal SwiftUI project (refuses to overwrite generated files by default).
ios_build_app	Build the iOS Simulator product with xcodebuild.
ios_build_and_run	Build → install → launch → show.
ios_install_app	Install a .app on the selected simulator (absolute paths allowed).
ios_launch_app	Launch by bundle id.
ios_terminate_app	Terminate by bundle id.
ios_open_url	Open a URL in the simulator.
ios_screenshot	Capture a PNG to disk, and return it as an image when the model accepts image input.
ios_logs	Read log show output, optionally filtered by bundle id.
ios_ui_status	Report UI-automation availability and the backend the settings selected.
ios_ui_tap / ios_ui_swipe / ios_ui_type_text / ios_ui_button / ios_ui_describe	idb-backed tap / swipe / typing / hardware button / accessibility tree.

Two behaviours deserve their own note:

• ios_screenshot always writes the PNG to disk (under <data dir>/screenshots/ by default) and additionally submits it to the host's attachment service for a canonical image block. When the current model declares no image input, or the deployment stores no attachments, the result degrades to text plus the file path instead of failing the call.
• ios_build_and_run resolves the bundle id in four steps — a fix over the original, which asked xcodebuild -showBuildSettings alone and, in a restricted environment, silently returned undefined after a successful build: explicit bundleId argument → CFBundleIdentifier of the .app that was just built (read with plutil, i.e. the value simctl installs) → -showBuildSettings with the same -derivedDataPath → identifiers found in project.pbxproj. The winner is reported as bundleIdSource.

Skill and slash command

• ios-dev skill — shipped in skills/ios-dev/ and registered by the host half through ctx.skills.register() as an embedded skill with the skill directory as its resourceBase. Rewritten for DSH: no mcp__… prefix, environment configuration points at the settings page, and the macOS precondition plus the "shut the simulator down when you are done" step are spelled out.
• /ios-dev [goal] command — registered through ctx.commands.register(). DSH user commands deliberately never create a model message, so this command does the one thing that is useful without the model: it runs the environment diagnostic and prints the verdict, the failing checks and their fixes.

Differences from the original

Aspect	Original (ZCode)	This plugin (DSH)
Tool exposure	stdio MCP server ios-simulator; the model sees mcp__ios_simulator__*	Native ctx.tools.register(); the model sees ios_*
User configuration	plugin.json userConfig (2 items), injected as environment variables	Settings page with 17 fields on a schemastery Config, all .volatile(); the old environment variables remain as fallbacks
Host check	process.platform read once, inside ios_preflight	Centralised requireMacOS() in front of every Apple-tooling call, plus the settings page's synchronous and authoritative verdicts
Working directory	process.cwd()	exec.agent.session.header.cwd (the session workspace)
Data directory	IOS_SIM_PLUGIN_DATA / temp	$DSH_HOME/ios-simulator-helper, configurable on the settings page
Path safety	inside(cwd, path) refuses escapes	Same semantics, split into read-only paths (an absolute .app is fine) and write targets (must stay inside the session workspace)
Screenshot result	MCP image content (base64)	An image block built from a host attachment reference, degraded to text plus a disk path on refusal
Result normalisation	Providers return objects containing undefined	Every tool result passes through toLosslessJson() (the registry rejects undefined)
Slash command	Injects a prompt into the model's conversation	Runs the diagnostic and prints the verdict
Process invocation	node:child_process spawn	Unchanged

Known limitations

• macOS only. On any other host ios_preflight fails the Host OS (macOS) check and skips the remaining probes instead of producing meaningless spawn failures; every tool that drives Apple tooling refuses, ios_discover_project, ios_create_app and ios_ui_status still answer, and the settings page keeps the notice at the top.
• ios_ui_* needs idb; ios_ui_status explains what is missing. xcodebuildmcp is only a reserved value (matching the original's reservedBackends) and is not implemented.
• The original's ios_build_and_run always opened the Simulator window; here that is the autoOpenSimulator setting (on by default, so behaviour matches). ios_build_app and ios_screenshot still do not open windows, as in the original. The window app is Simulator.app on Xcode 25 and earlier and Device Hub on Xcode 26 and later; a window that cannot be opened is reported in the result (opened: false plus openWarning) and never fails the simctl steps.
• ios_logs reads log show (no live stream), with a configurable and clamped window and length.
• Swift macros (@State, #Preview) need swift-plugin-server, which cannot start its nested sandbox-exec when the caller is itself sandboxed. ios_build_app then retries the build once with OTHER_SWIFT_FLAGS=-disable-sandbox and reports macroSandboxRetry: true; a caller that was never sandboxed never sees a retry.
• The generated project template is byte-for-byte the original's (an Xcode 14-compatible project.pbxproj, objectVersion = 56) and does not track newer Xcode templates.
• The settings page has only been checked by eye in DSH Desktop: the plugin is installed into the desktop profile, and the four shots in assets/ are the latest manual pass, top to bottom. Dark theme, narrow-width wrapping and the non-macOS notice are still covered by the render tests, not by eye.
• No credential handling: the plugin never reads or forwards key/token/secret environment variables.

Releases

Every release is one commit in two places: tagged vX.Y.Z on main and published to npm from that tag, whose SHA npm records as gitHead. The list is at Releases — v1.1.1 is the latest, after v1.1.0 and v1.0.0, all three dated 2026-10-17.

Contributing

Issues and pull requests are welcome at github.com/zhz8888/dsh-ios-simulator-helper. Every change has to keep pnpm check green — unit tests, a host/client consistency gate and a mount on a real Cordis host — and there is no CLA or form to fill in: a focused pull request that says what it changes and why is enough.

The package is shaped for the awesome-dsh-plugin market. Development conventions — commands, invariants, testing, commit and release rules — live in AGENTS.md.

License

MIT, copyright (c) 2026 zhz8888. Tool definitions, provider logic and the generated SwiftUI project template are ported from the ZCode official ios-simulator plugin, distributed under the MIT License by Z.ai; the template sources are kept verbatim. See the attribution at the end of LICENSE.
