dsh-data-agent

A DeepSeek Harness (dsh) plugin for managing database connections and running SQL, both conversationally and from the Web UI's Settings page.

Features

• Data-source management — register MySQL, PostgreSQL, SQLite, or ClickHouse connections (da_add_data_source/da_edit_data_source/da_remove_data_source/da_list_data_sources), or manage them from Settings → Data Sources.
• Connection checks & schema browsing — da_test_connection and da_get_schema (database overview or full column detail for one table), rendered as a Markdown table in chat and as a rich, expandable browser in both the chat card and the Settings schema viewer.
• Table/column comments — da_set_comment from chat, or click-to-edit inline in the Settings schema viewer; both write to the same store.
• SQL execution with a read-only toggle — da_run_sql, AST-verified (not string-matched) to reject write statements on a read-only source and to always reject statement-stacking. Chat can make a source read-only (da_set_read_only), but only the checkbox in Settings can make it read-write again, so a prompt-injected model can't lift the flag and then write.
• Charts — da_render_chart renders a chart.js bar/stacked-bar/line/pie chart from either data (inline rows) or resultId (a prior da_run_sql call's result, referenced by id instead of resent — cached in memory per conversation for 30 minutes). Alongside the interactive Web UI chart, it also rasterizes a static PNG server-side (via skia-canvas) and returns a URL to it, so the chart can be embedded as a Markdown image in the model's own reply.

Secrets are never stored directly: connections reference a passwordEnv (an environment variable name), resolved at connect time via the harness's ctx.credentials seam when mounted, else process.env.

The variable name must start with DSH_DA_ (e.g. DSH_DA_PROD_DB_PASSWORD), so a source can never read an unrelated secret such as an API key from the host environment. Credentials are attached only from Settings → Data Sources, never from chat: the chat tools can't set passwordEnv, and on a source that has one they can't change host, port, user, ssl, sslmode, or sslrootcert. That way a prompt-injected model can't redirect a saved password to another host.

SQLite file paths get the same treatment. From chat, a SQLite source's path must be inside a directory listed in the plugin's sqliteChatDirs config, checked after resolving symlinks and ..; file: URIs are refused. The list is empty by default, so SQLite sources are added from Settings unless you opt a directory in:

config:
  sqliteChatDirs:
    - /home/me/data

Demo

https://github.com/user-attachments/assets/fa149214-cdd0-4820-9711-8e7451bb462f

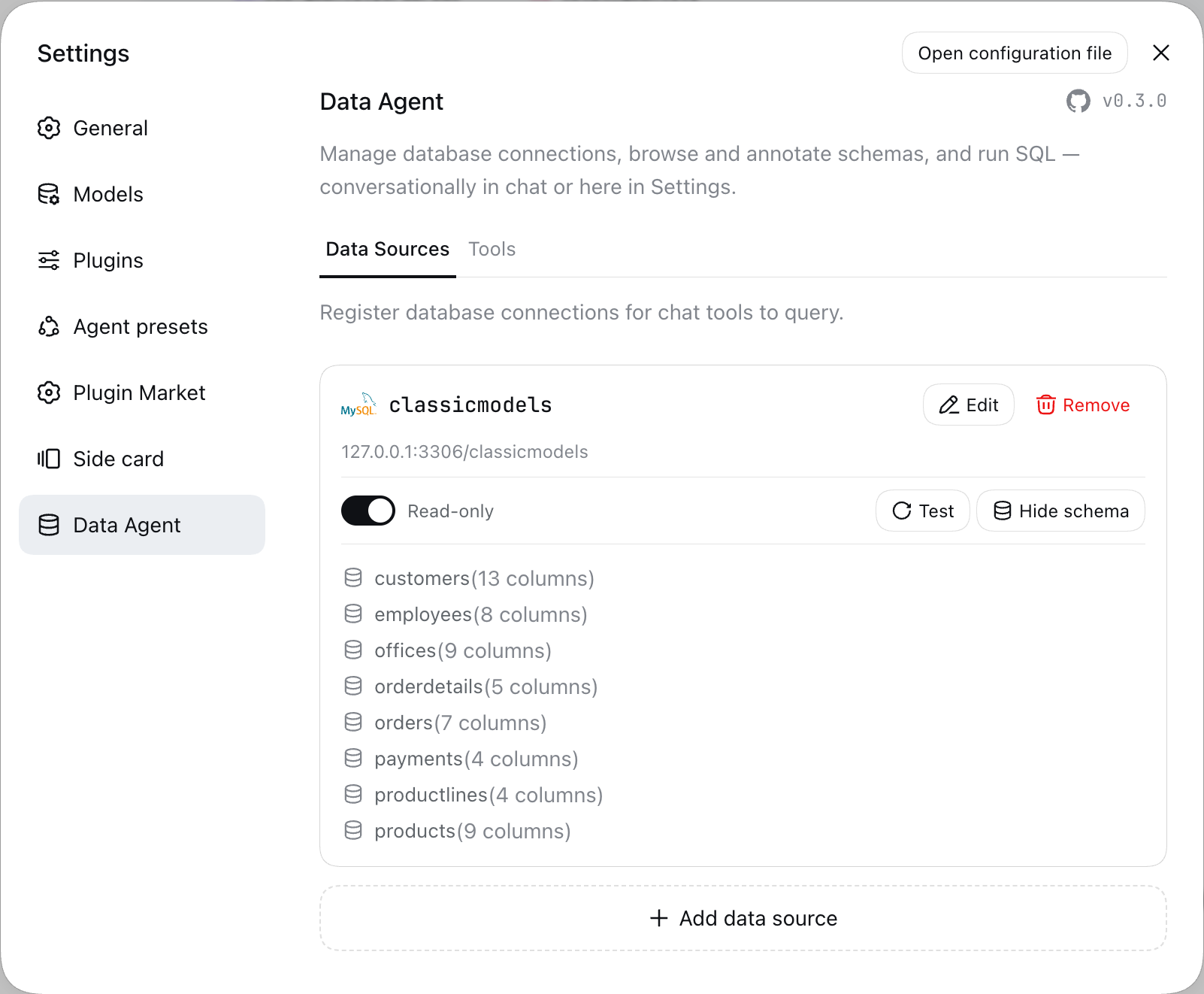

Connections, schema, and read-only toggling are also manageable straight from Settings → Data Agent:

Install

Requires a web profile already booted at least once (dsh --profile web).

# 1. Install the dsh launcher
npm install -g @deepseek-ai/dsh

# 2. Install this bundle into the web profile
dsh plugin --profile web add @tomowang/dsh-data-agent

# 3. Approve skia-canvas's native build script (needed for da_render_chart's PNG output)
dsh plugin --profile web approve-builds

dsh reconciles the profile manifest's dsh.profile.bundles list automatically (this package declares dsh.bundle.patch), fetching the published npm package — no local checkout or build step needed. Restart the web profile process to pick it up.

Installing from the dsh-market

Alternatively, you can install @tomowang/dsh-data-agent from the dsh-market in the Web UI. Search tomowang/dsh-data-agent, and click Install on the result.

Develop

pnpm install
pnpm run typecheck
pnpm run test

Scripts:

• pnpm run typecheck — type-check both the Host (tsconfig.json) and Client (tsconfig.client.json) source
• pnpm run test — run the unit tests (vitest): SQLite in-process (no server needed), the SQL classifier, persistence, registry, and chat-tool logic. The integration suites in tests/integration/ are skipped here
• pnpm run test:integration — run the MySQL/PostgreSQL/ClickHouse adapters against real servers (see below)
• pnpm run build — build both halves to lib/ (build:host + build:client)
• pnpm run build:host / build:client (or watch:host / watch:client, or plain watch for both at once) — build one half only
• pnpm run dev — build both halves and link this plugin into the local web profile (see below)

Integration tests

tests/integration/ drives the MySQL, PostgreSQL, and ClickHouse adapters against real servers. It covers database-enforced read-only mode, the row cap, query timeouts, writes, and how cell types are converted. CI runs it on every push and pull request, with the servers as service containers (.github/workflows/ci.yml), once against MySQL 8.4 and once against MariaDB 11.4. The release workflow won't publish unless it passes.

Locally, start the same servers with Docker (or Podman) and run the suite:

docker compose up -d --wait
pnpm run test:integration
docker compose down

To run only some engines, set DSH_DA_IT_ENGINES (e.g. DSH_DA_IT_ENGINES=postgres pnpm run test:integration). The tests expect each server on its default port on 127.0.0.1, with password pw and a database named it. DSH_DA_IT_HOST, DSH_DA_IT_PG_PORT, DSH_DA_IT_MYSQL_PORT, DSH_DA_IT_CLICKHOUSE_PORT, and DSH_DA_IT_PASSWORD override those defaults.

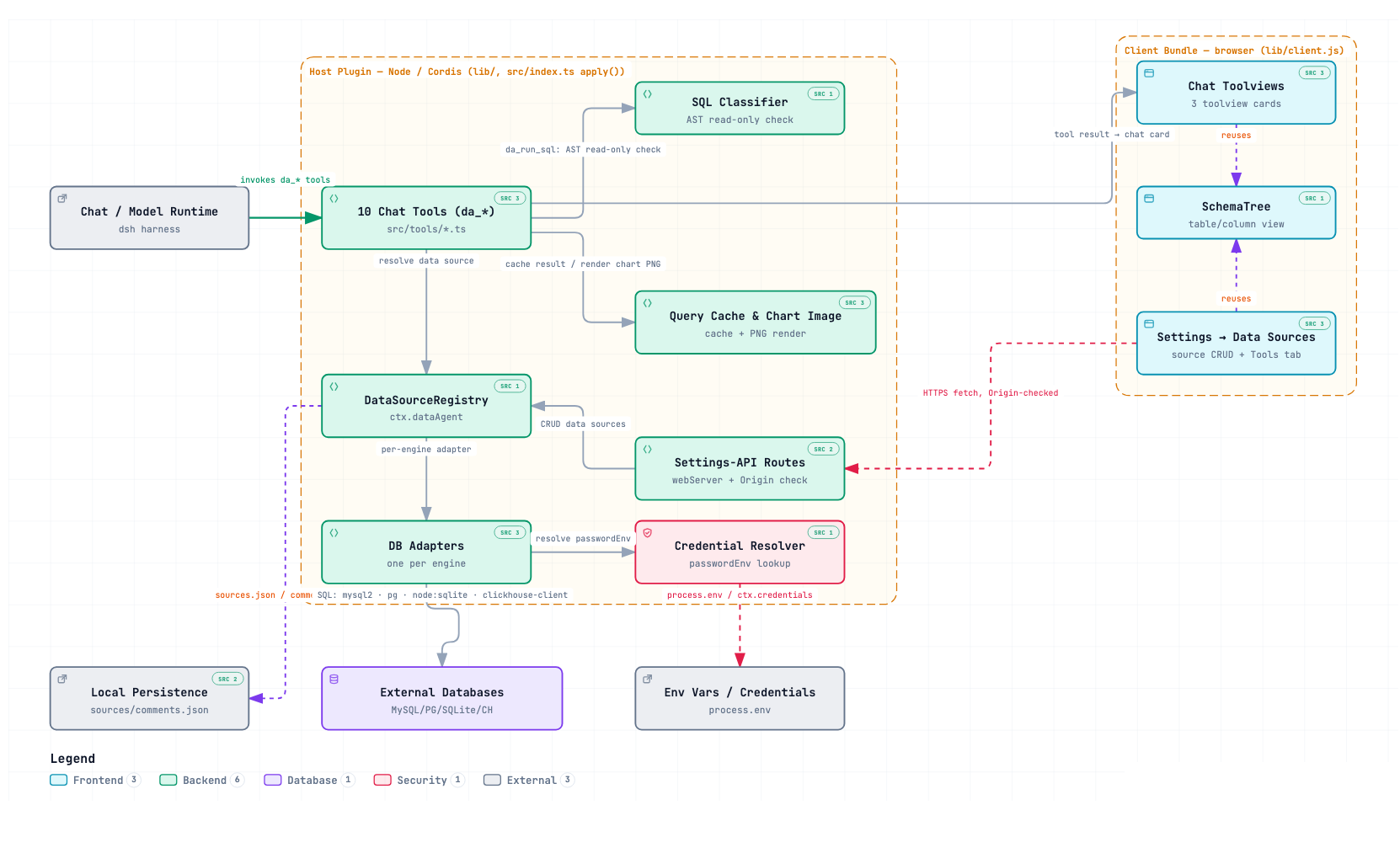

Architecture

Project layout

src/
  index.ts                composition root: Config, apply() — mounts the registry, tools, the Settings-API routes, and the chart-image route
  data-source/
    types.ts, errors.ts   shared vocabulary and stable error codes
    registry.ts           DataSourceRegistry (ctx.dataAgent): the Map-based connection registry
    credential.ts         passwordEnv resolution (soft ctx.get('credentials'), else process.env)
    schema-comments.ts    merges comments.json into a raw schema result (shared by the tool and the Settings route)
    persistence/          sources.json / comments.json (atomic, cross-process-safe)
    adapters/              one DataSourceAdapter implementation per engine (mysql2, pg, node:sqlite, @clickhouse/client)
  sql/classify.ts         node-sql-parser-based read-only + single-statement enforcement
  tools/                  the ten model-facing tools (one file each), plus QueryResultCache (ctx.queryResultCache),
                          chart-config.ts (shared chart.js config builder), and the chart-image render/store/route
                          backing da_render_chart's static PNG output (ctx.chartImageStore)
  settings-api/           raw ctx.webServer routes + Origin trust check backing the Settings panel
src/client/                the browser bundle (see below)
  index.ts                client plugin entry: registers the three chat toolviews + the Settings section
  tool/                   da_run_sql / da_get_schema / da_render_chart chat cards (card models + components + toolview registrations)
  settings/               the Data Sources settings panel + its fetch() API client
  shared/SchemaTree.tsx   table/column browser shared by the chat card and the Settings panel
scripts/build-client.mjs esbuild build for src/client -> lib/client.js
cordis.patch.yml          the bundle layer applied when a profile lists this package

Developing against the web profile

Local development only — this links your working copy into a profile in place of the published package, so you can iterate without cutting a release. It assumes a globally installed dsh CLI (npm i -g @deepseek-ai/dsh, or any dsh resolvable on PATH) and a web profile already booted at least once (dsh --profile web).

Link this checkout into the web profile and register it as a bundle:

pnpm run dev
# same as: pnpm run build && dsh plugin --profile web add .

This is one-time (or re-run after changing package.json dependencies): pnpm link:s this directory into the profile's node_modules and appends @tomowang/dsh-data-agent to the profile's dsh.profile.bundles. Verify the layer, then boot:

dsh --profile web --dump-config   # confirm the "# == @tomowang/dsh-data-agent" layer
dsh --profile web

Because it's a symlink, no need to re-run add after an edit — but the profile loads lib/, never src/ directly, for either half: rebuild with pnpm run build (or the narrower scripts above) before the next boot picks up an edit. There's no hot-reload for either half (checked: @deepseek-ai/cordis-plugin-hmr explicitly excludes anything resolved through node_modules, which is how a linked profile always loads this plugin) — a running dsh --profile web process needs restarting to pick up a rebuilt bundle, reloading the page alone is not enough (the plugin bundle list is fixed at process boot). dsh plugin --profile web remove @tomowang/dsh-data-agent undoes the install.

For quick Host-only throwaway testing without touching any profile (also local development only; skips the client bundle, so no Web UI cards/settings — use the linked-profile flow above for that), overlay the source file directly against a deepseek-harness source checkout:

cd /path/to/deepseek-harness   # your local checkout
pnpm dsh web --patch <(cat <<EOF
- insert:
    - id: data-agent
      name: '/path/to/dsh-data-agent/src/index.ts'
      config:
        defaultMaxRows: 500
EOF
)

See deepseek-harness's plugin tutorials and packaging guide for the full plugin/bundle model.

Known v1 limitations

• SQL placeholder syntax isn't unified across engines: ? for MySQL/SQLite, $1, $2, ... for PostgreSQL, {p1:Type}, {p2:Type}, ... for ClickHouse (its HTTP interface only supports named parameters; params binds to them positionally as p1, p2, ...).
• da_run_sql's safety check rejects any statement the parser can't classify (e.g. SQLite PRAGMA, some PostgreSQL EXPLAIN forms, ClickHouse FORMAT clauses) rather than guessing — use da_get_schema for introspection instead of raw PRAGMA, and omit FORMAT (the ClickHouse adapter always sets its own output format).
• node-sql-parser (the AST-based safety check) has no dedicated ClickHouse dialect; ClickHouse sources are classified against its PostgreSQL grammar, which is close enough for common SELECT/DDL/DML but will reject some ClickHouse-specific syntax as unparseable rather than misclassifying it.
• The Settings panel's raw HTTP routes use a hand-rolled trust check rather than the harness's own /api trust fence (which is specific to ctx.remote calls). The Host header must name this server (loopback, or this machine's own addresses on a 0.0.0.0 bind), which defeats DNS rebinding. Origin, when sent, must match it. Every API route requires a JSON POST, which a cross-site page can't send without a CORS preflight. There's still no authentication: any local process can call these routes, which fits the loopback-only threat model but doesn't match the harness's own guarantees.
