dsh-git-tree

A DeepSeek Harness plugin that gives the Web GUI a Sourcetree-style Git workspace: a full-height panel with the left rail Sourcetree has (Working Copy / branches / tags / remotes), a staged/unstaged file list, and a diff viewer — inside DSH, next to your conversation, instead of in another app.

中文文档

35-second intro (mp4, 3.6 MB) · poster

What it does today

Version 0.7.3 is the local workbench slice: file status, history, search and local branches — read, stage, commit, switch branches and inspect any commit inside the panel, push the current branch, and let a DSH model write the commit message. Fetch/pull, remote branches and remote management are not implemented yet.

• A main panel, opened from the Git row in DSH's left icon rail — the same kind of seat the Plugins page uses, so it gets the full centre column, the window chrome inset, and DSH's theme for free.
• Repository switcher in the toolbar: pick any workspace registered in DSH; every route then runs against that repository.
• Branch + sync state: current branch, upstream, ahead/behind, repository root.
• Sourcetree's change model: conflict, staged and unstaged groups with counts; renames keep their original path; a file changed on both sides appears in both groups (driven by git status --porcelain=v2 --branch -z).
• Structured diff: parsed on the host into files → hunks → lines, rendered with dual line numbers, hunk headers, whole-row tints and +N −M.
• Stage / unstage / commit: per-row checkbox, hover menu, file-level action in the diff header, a commit box with author, branch, staged count and ⌘↵ — plus a ---guarded, conflict-checked host route for each write.
• History view: commits newest-first with a lane graph, description / short SHA / author / date columns, an "all branches / current branch only" switch and paged loading (200 per page).
• Commit detail: select a commit to see its message, author, date, parents, refs and changed files; pick a file for its in-commit diff; follow a parent link to jump.
• Search view: find commits by message, author or file path; results reuse the history list and detail.
• Branches: click a branch to browse its history, double-click to check out; create, rename and delete local branches from the rail. Checkout refuses a dirty working copy instead of stashing your changes.
• Right-click actions: file rows offer commit (stage + focus the message), stage/unstage, discard changes, delete file / delete untracked file and copy path; branch rows offer checkout, rename, delete and copy name; commit rows offer copy SHA, new branch from this commit and copy message. Destructive items confirm first and only live items are red.
• Push: push the current branch to its upstream (setting the upstream on first push). Never forces; authentication and non-fast-forward failures are translated into readable next steps.
• Commit and push: a checkbox in the commit card pushes right after a successful commit. A failed push never rolls the commit back.
• Foldable commit card: the card folds to one strip — author, branch, staged count and the first line of the message — so the diff gets the space back. The Fold/Unfold pill sits at the right of the metadata row in both states; clicking the strip unfolds too, and the fold is remembered across reloads. A row action that opens the message box unfolds it first.
• AI commit message: the ✨ button in the commit card writes the message from the diff of the files that commit would include — the staged rows when there are any, otherwise every working-tree row — and the model chip picks which DSH model does it. The picker is the live DSH model catalog (every registered provider, grouped), the choice is remembered per DSH home, and the call itself goes through DSH's own llm service; there is no second provider configuration in this plugin. It only fills the text box: you still review and press Commit. The diff of the selected files is sent to the model you chose.
• Local actions: reveal the repository in Finder or open it in Terminal (macOS).
• Live: the panel polls status every 2s while visible and refetches immediately after a write.
• Small write surface by construction: stage/unstage/commit, discard, delete, branch create-rename-delete, checkout, merge into the current branch, and a push of the current branch that never forces. No reset --hard, no force-push, no amend, no rebase, no stash route exists.

Status

Area	0.7.3
main panel + sidebar launcher	done
repository switcher (DSH workspaces)	done
branch / ahead / behind / references rail	done
conflict / staged / unstaged groups	done
structured per-file diff	done
stage / unstage / commit	done
AI commit message + DSH model picker	done
history view (lanes, paging, filters)	done
commit detail + in-commit diff	done
search (message / author / path)	done
branch navigation + checkout	done
branch create / rename / delete	done
right-click actions + discard / delete	done
push / commit and push	done
Finder / Terminal	done
auto refresh	done
right-sidebar tab (compact mode)	not yet
push current branch	done
fetch / pull / remote branches / remote management	not yet
merge into current branch	done
rebase / stash / conflict-resolution UI	not yet
large-repo virtualisation	not planned
agent-shared operations	not yet

The full plan, including the measured UI spec the layout is built from, is in docs/PLAN.md.

Design notes

The panel copies Sourcetree's information architecture, not its chrome. The layout numbers are measured, not guessed: they come from the running app's accessibility tree and from decoding its Interface Builder archives — see docs/sourcetree-ui.md and docs/ib-summary.md.

Two consequences worth knowing:

• Sourcetree's diff has no syntax highlighting; it distinguishes lines with whole-row colour only. This panel does the same on purpose — in a diff, "which lines changed" beats "which token is a keyword".
• Every colour here is a --dsw-alias-* theme token, so light and dark both work without a second design. npm test fails if a hardcoded colour ever ships.

AI commit message

The ✨ button and the model chip in the commit card are one small, bounded feature:

• Which model: the list is ctx.llm's live catalog — every provider DSH has registered, with the models it advertises. It is the same list the DSH model picker shows, fetched per request, so a model you add in DSH settings appears here without a restart of the panel.
• Which files: the diff of the files this commit would include — the staged rows when anything is staged, otherwise the working-tree rows. Untracked files contribute their path, not their content, because git diff has no side to compare; a diff longer than 24 KB is cut and the cut is marked.
• What leaves the machine: the file list and that diff, sent to the model you picked, once per press. Nothing else — no repository history, no credentials, no session context.
• What it does not do: it never commits, never stages, never edits a file. The message lands in the text box for you to edit or reject.
• Where the choice lives: ~/.dsh/git-tree/ai-settings.json (or $DSH_HOME/git-tree/ai-settings.json), written by the host half. Without a saved choice the card uses the DSH default Agent model, and if that route is no longer advertised it shows "choose model" instead of calling a broken route.
• Failures are named: missing credentials, rate limits, a model that tries to call a tool, an empty answer and a timeout each come back as their own message instead of a generic error.

How it is wired into DSH

Half	File	What it does
Host	index.js (plain ESM, no build)	registers two authenticated exact Fetch routes via ctx.connection.fetch.register, runs git through ctx.subprocess
Client	client.js (built from src/client/index.tsx)	registers the sidebar launcher into sidebar.panellist and the panel into main, both under the id git-tree

GET  /api/git-tree/workspaces              → registered DSH workspaces
GET  /api/git-tree/status?cwd=…            → branch, upstream, ahead/behind, entries[], counts
GET  /api/git-tree/diff?path=…&side=…      → files → hunks → lines, stats (or commit=<sha>)
GET  /api/git-tree/refs?cwd=…              → local branches, tags
GET  /api/git-tree/history?scope=…         → commits with lanes, paging, filters
GET  /api/git-tree/commit-info?sha=…       → metadata, parents, refs, changed files
GET  /api/git-tree/ai/models               → DSH model catalog + saved/default route
POST /api/git-tree/stage                   → { paths[] }
POST /api/git-tree/unstage                 → { paths[] }
POST /api/git-tree/commit                  → { message } → { sha, shortSha, subject }
POST /api/git-tree/commit-message          → { side, files[] } → { message } (one model call)
POST /api/git-tree/ai/model                → { provider, model } → remembered choice
POST /api/git-tree/checkout                → { branch } → refuses a dirty work tree
POST /api/git-tree/branch/create|rename|delete
POST /api/git-tree/open                    → { target: 'finder' | 'terminal' }
POST /api/git-tree/push                    → current branch → its upstream (no force)
POST /api/git-tree/discard                 → { paths[], side } → git restore
POST /api/git-tree/remove                  → { paths[], untracked } → git rm / git clean

Git runs without a shell, with GIT_TERMINAL_PROMPT=0 (never blocks on credentials), GIT_OPTIONAL_LOCKS=0 (never takes optional locks in your repo), GIT_CONFIG_COUNT=0 and bounded output and time. A path that is absolute, contains .., or starts with - is refused before it reaches argv, and a cwd outside the workspace is refused with 403.

The host mechanism is documented against the installed build in docs/dsh-plugin-api.md — slot ids, the Fetch-route channel, subprocess safety and theme tokens, all with file:line citations into app.asar.

Install

From npm, by name — the package ships both halves and the bundle patch:

dsh plugin --profile <name> add dsh-git-tree

Or, from a session that has the plugin manager:

plugin_manager action=install_bundle target=dsh-git-tree

From this checkout:

dsh plugin --profile <name> add /Library/aiProject/dsh-git-tree

Restart DSH after installing: the host half is mounted at app startup. Nothing is written to your repository until you press a stage or commit control.

Development

node build.mjs     # src/client/index.tsx → client.js (committed artifact)
npm run check      # node --check on both halves
npm test           # 78 assertions: manifest, host routes, parsers, client boot, import guard

build.mjs resolves esbuild from this package's node_modules, then from an installed dsh-workbench; if neither is present it stops with the exact command to fix that (npm i -D esbuild).

The test suite needs no DSH, no git and no browser:

• test/manifest.test.mjs — what the loader validates (platform, exports, patch row, icon, locales).
• test/routes.test.mjs — apply() against a fake context: all seven routes, the real change model, workspace switching, -- before paths, traversal/absolute/option-shaped paths refused, commit pre-checks.
• test/host-modules.test.mjs — parsers as pure functions: porcelain v2 (rename/conflict/two-sided), unified diff, refs.
• test/ui-contract.test.mjs — the built bundle: module-loader wrapper, exactly two slot registrations under one id, routes called, theme tokens only, no document.body.
• test/client-boot.test.mjs — evaluates the built bundle in Node, materialises the plugin and calls apply() against a Cordis-like context that throws on undeclared services.
• test/client-imports.test.mjs — a narrow static guard: every route helper the shell uses must be imported (esbuild does not catch free identifiers).

Intro media

docs/media/ holds the promo kit: the intro film, a silent loop for this page, the tall poster and the wide cover.

File	What it is
promo.mp4	35 s intro (1920×1080, H.264, 3.6 MB)

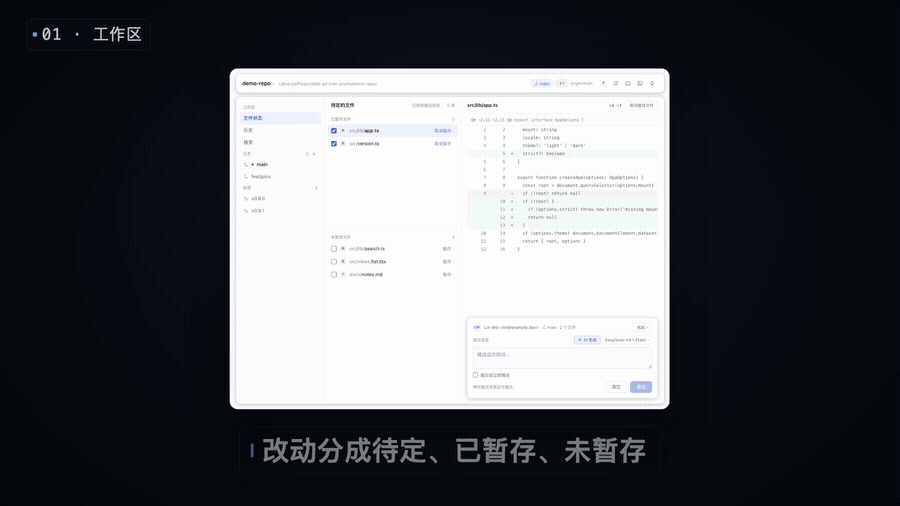

promo-loop.gif	6 s silent loop used above (900 px wide)
poster.png	tall poster, 1782×2353

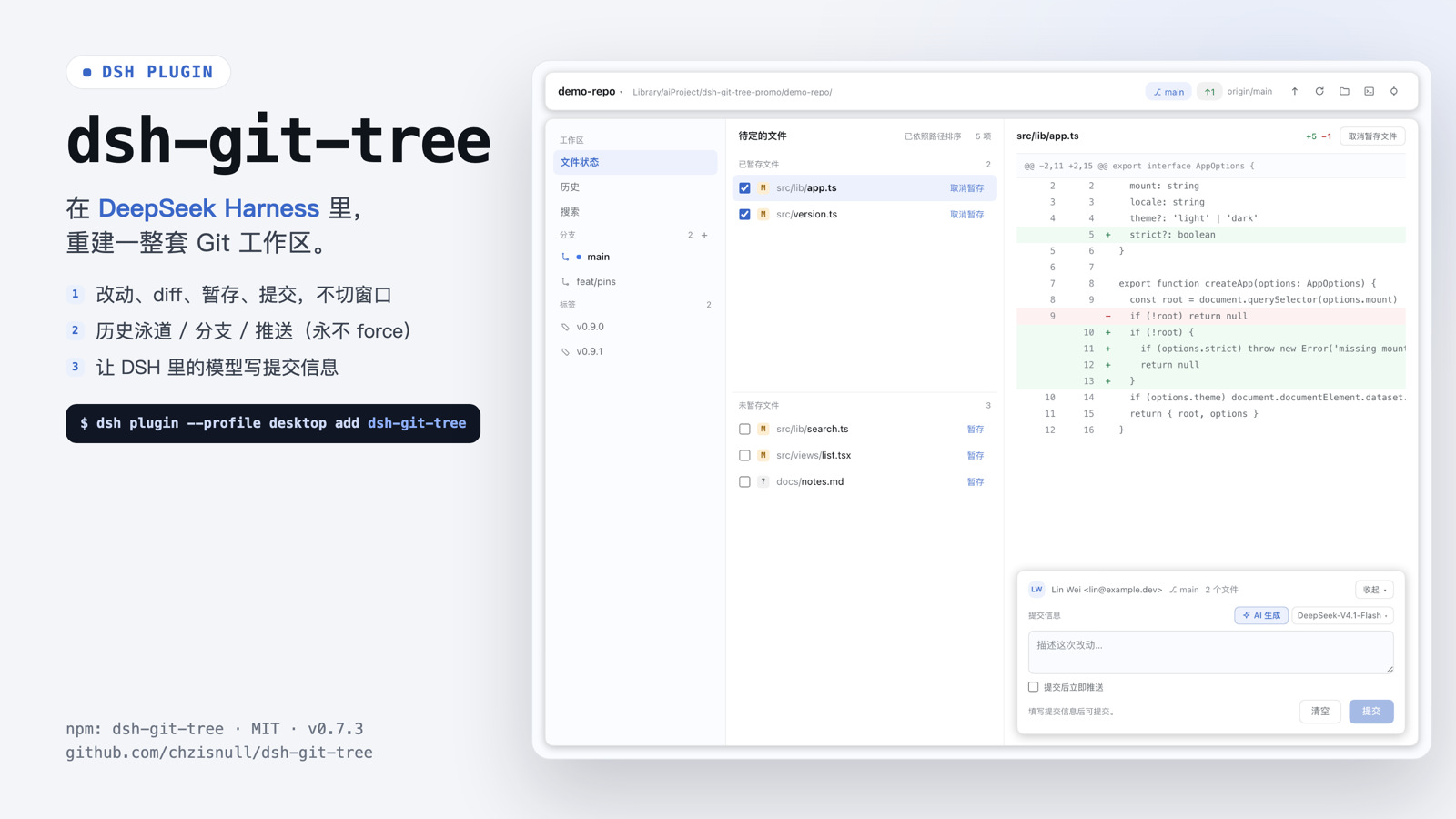

cover.png	wide cover, 1600×900

The film and images were captured from the real panel against a fictional demo repository (aurora-notes, author Lin Wei <lin@example.dev>); the install segment is a real install of the published package in a throwaway DSH profile.

Design mockups

docs/design/ holds the four artboards the implementation is being measured against:

File	Frame
overview.png	all four
frame1-docked.png	compact panel next to a conversation
frame2-workspace.png	full workspace: rail / files / diff / commit box
frame3-history.png	history lanes and commit detail
frame4-states.png	row states, size grid, theme tokens, data flow

License

MIT
